I. Core Sorting Equipment and Technology

1. Intelligent Sorting Machine

Technical Principle:

AI visual recognition: High-speed cameras (such as with a resolution of 1280×1024 and a frame rate of 165 frames per second) capture the barcode/slip information of packages, and combine with OCR technology to extract the sender and recipient data 35.

Multi-sensor fusion: Infrared ranging (with an accuracy of 1.25mm) + weighing sensor (with an accuracy of ±0.02%), enabling simultaneous detection of volume/weight 310.

Efficiency Comparison:

Traditional manual sorting: 8,000 pieces per day

Intelligent sorting system: 5,500 pieces per hour (such as the Shunfeng Wenhuaibei Apricot Sorting Center) 25.

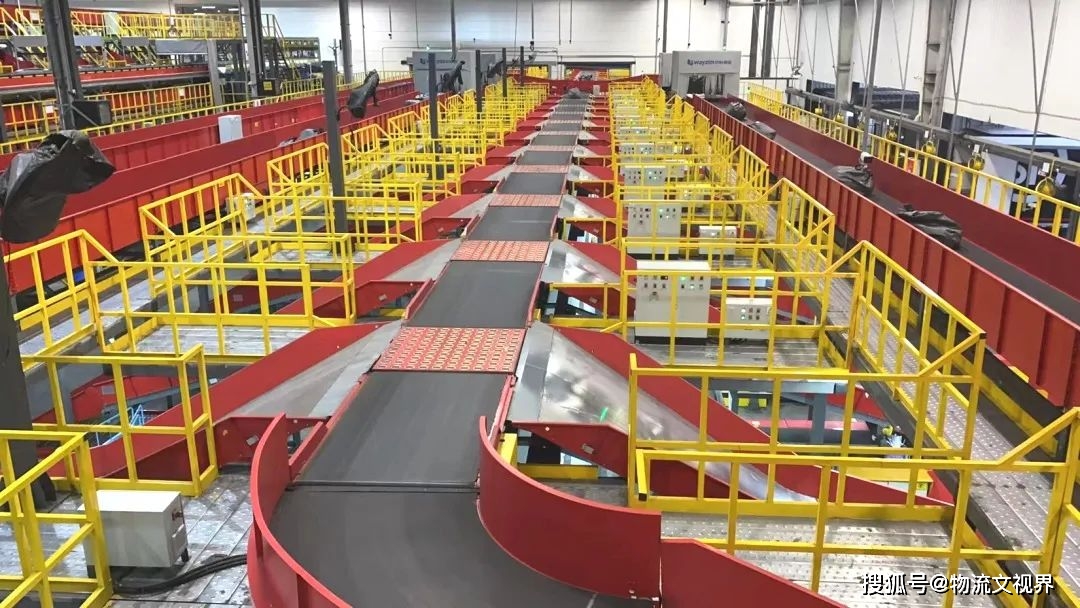

2. Automated Sorting Platform

Patent Technology:

Package alignment system: Spring guide plates + guide wheels automatically correct tilted packages, reducing sorting errors (Patent of Fujian Aoda, CN222325818U) 10.

Modular design: The number of sorting ports can be flexibly increased or decreased, suitable for different-sized transfer centers 3.

3. Heavy Cargo Sorting Scheme

DWS System (Dynamic Weighing Scanning):

The entire process of face recognition, weighing and volume measurement is completed within 0.3 seconds. It can handle packages weighing up to 70 kilograms (case study from JD Logistics). 7

The anti-collision cotton strips are designed to protect fragile items, and the sorting accuracy rate is close to 100%. 7

II. Intelligent Management System

1. Cloud Control Platform

Real-time Monitoring: Remote management of sorting equipment across the country, with abnormal alerts and online maintenance guidance (case of China Post Technology) 5.

Data-driven optimization:

Based on historical data, predict the destination of packages and schedule sorting resources in advance (for example, the automatic planning of air resources at the Luotai Bai杏 Sorting Center). 2

2. AI algorithm upgrade

Path planning: Dynamically calculate the optimal sorting route to reduce equipment idling (Cainiao unmanned vehicle public road delivery technology) 5.

Anomaly detection: Automatically mark face-blurred or damaged packages, trigger audible and visual alarms, and slide down to the anomaly box 3.

III. Industry Customized Solutions

1. Fresh Food Express Delivery Sorting

Cold Chain Integration:

Intelligent temperature-controlled sorting line (-25℃ operating environment), in conjunction with air freight + land transportation cold chain matrix (example of Shunfeng's WanTai White Apricot case) 2.

The loss rate has decreased from 7% to 1.5% (through rapid sorting + precise temperature control) 26.

2. Sorting of Large and Heavy Cargo

Solution:

Double-layer sorting line design (small items on the upper layer / large items on the lower layer), avoiding equipment overload 7.

Electric pallet trucks assist in loading and unloading, reducing manual labor by 70%.

3. Rural End-Point Sorting

Mobile sorting equipment:

Removable modular design, suitable for small-scale sorting requirements in county-level areas (such as the direct-sourcing sorting center in Yangxia Town, Yuantai County)
